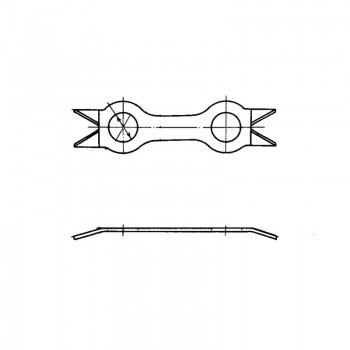

Шайбы стопорные двойные ОСТ 1 34528-80

Материал: Сталь 20

Покрытие: Ц9.хр

Аналоги: 3459А, 3460А

Таблица 1

Номинальный
диаметр
резьбы
крепежной
детали		 Применяе-
мость		 d D b B l l1 r r1 r2 S
Пред. откл.
по H12 по h14
3   3,3 6,0 4 5,0 5,5 3,0 0,5 8 0,8 0,5
4   4,3 7,0 6,0 3,5
5   5,4 8,5 6,0 7,3 4,1
6   6,5 10,0 5 7,5 9,0 5,0 0,8 10 1,2 0,8
8   8,5 13,0 9,0 11,0 6,5 1,5 1,0
10   10,5 15,0 6 10,0 13,0 7,5 1,0 12
12   12,5 18,0 11,0 15,0 9,0
14   14,5 20,0 7 12,0 17,0 10,0 1,2 15 1,8 1,2
16   16,5 23,0 13,0 18,0 11,5
18   18,5 25,0 8 15,0 21,0 12,5
20   20,5 28,0 16,0 22,0 14,0 1,5
22   22,5 31,0 10 18,0 24,0 15,5
24   24,5 34,0 19,0 27,0 17,0



Таблица 2

А
Пред.
откл.
±0,2		 d
3,3 4,3 5,4 6,5 8,5 10,5 12,5
Применяе-
мость		 Масса
1000 шт., кг		 Применяе-
мость		 Масса
1000 шт., кг		 Применяе-
мость		 Масса
1000 шт., кг		 Применяе-
мость		 Масса
1000 шт., кг		 Применяе-
мость		 Масса
1000 шт., кг		 Применяе-
мость		 Масса
1000 шт., кг		 Применяе-
мость		 Масса
1000 шт., кг
10,0   0,450   -   -   -   -   -   -
10,5 0,452 - - - - - -
11,0 0,454 - - - - - -
11,5 0,456 - - - - - -
12,0 0,458 - - - - - -
12,5 0,460 - - - - - -
13,0 0,462 - - - - - -
13,5 0,464 - - - - - -
14,0 0,466 - - - - - -
14,5 0,468 - - - - - -
15,0 0,470 - - - - - -
15,5 0,472 - - - - - -
16,0 0,474 - - - - - -
16,5 0,476 - - - - - -
17,0 0,478 - - - - - -
17,5 0,480 - - - - - -
18,0 0,482 - - - - - -
18,5 0,484 - - - - - -
19,0 0,486 - - - - - -
19,5 0,488 - - - - - -
20,0 0,490 0,490 0,640 - - - -
20,5 0,492 0,492 0,660 - - - -
21,0 0,494 0,494 0,680 - - - -
21,5 0,496 0,496 0,700 - - - -
22,0 0,498 0,498 0,720 - - - -
22,5 0,500 0,500 0,740 - - - -
23,0 - 0,502 0,760 - - - -
23,5 - 0,504 0,780 - - - -
24,0 - 0,506 0,800 - - - -
24,5 - 0,508 0,820 - - - -
25,0 - 0,510 0,840 0,420 2,250 - -
25,5 - 0,512 0,860 1,440 2,270 - -
26,0 - 0,514 0,880 1,460 2,290 - -
26,5 - 0,516 0,900 1,480 2,310 - -
27,0 - 0,518 0,920 1,500 2,350 - -
27,5 - 0,520 0,940 1,520 2,370 - -
28,0 - 0,522 0,960 1,540 2,390 - -
28,5 - 0,524 0,980 1,560 2,410 - -
29,0 - 0,526 1,000 1,580 2,430 - -
29,5 - 0,528 1,020 1,600 2,450 - -
30,0 - 0,530 1,040 1,620 2,470 3,140 3,530
30,5 - 0,532 1,060 1,640 2,490 3,170 3,560
31,0 - 0,534 1,080 1,680 2,510 3,200 3,590
31,5 - 0,536 1,100 1,700 2,530 3,230 3,610
32,0 - 0,538 1,120 1,720 2,550 3,260 3,640
32,5 - 0,540 1,140 1,740 2,570 3,290 3,670
33,0 - 0,542 1,160 1,760 2,590 3,320 3,700
33,5 - 0,544 1,180 1,780 2,610 3,350 3,730
34,0 - 0,546 1,200 1,800 2,630 3,380 3,760
34,5 - 0,548 1,220 1,820 2,650 3,410 3,790
35,0 - 0,550 1,240 1,840 2,670 3,440 3,810
35,5 - 0,552 1,260 1,860 2,690 3,470 3,840
36,0 - 0,554 1,280 1,880 2,710 3,500 3,870
36,5 - 0,556 1,300 1,900 2,730 3,530 3,900
37,0 - 0,558 1,320 1,920 2,750 3,560 3,930
37,5 - 0,560 1,340 1,940 2,770 3,590 3,960
38,0 - 0,562 1,360 1,960 2,790 3,610 3,990
38,5 - 0,564 1,380 1,980 2,810 3,640 4,020
39,0 - 0,566 1,400 2,000 2,830 3,670 4,050
39,5 - 0,568 1,420 2,020 2,850 3,700 4,070
40,0 - 0,570 1,440 2,040 2,870 3,730 4,100
40,5 - 0,572 1,460 2,080 2,890 3,750 4,130
41,0 - 0,574 1,480 2,100 2,910 3,780 4,160
41,5 - 0,576 1,500 2,120 2,930 3,810 4,190
42,0 - 0,578 1,520 2,140 2,950 3,830 4,220
42,5 - 0,580 1,540 2,160 2,970 3,860 4,250
43,0 - 0,582 1,560 2,180 2,990 3,890 4,270
43,5 - 0,584 1,580 2,200 3,110 3,920 4,300
44,0 - 0,586 1,600 2,220 3,130 3,950 4,330
44,5 - 0,588 1,620 2,240 3,150 3,980 4,360
45,0 - 0,590 1,640 2,260 3,170 4,010 4,390
45,5 - 0,592 1,660 2,280 3,190 4,040 4,410
46,0 - 0,594 1,680 2,300 3,210 4,070 4,440
46,5 - 0,596 1,700 2,320 3,230 4,100 4,470
47,0 - 0,598 1,720 2,340 3,250 4,130 4,500
47,5 - 0,600 1,740 2,360 3,270 4,160 4,530
48,0 - 0,602 1,760 2,380 3,290 4,190 4,560
48,5 - 0,604 1,780 2,400 3,310 4,210 4,590
49,0 - 0,606 1,800 2,420 3,330 4,240 4,610
49,5 - 0,608 1,820 2,440 3,350 4,270 4,640
50,0 - 0,610 1,840 2,460 3,370 4,290 4,670
50,5 - 0,612 1,860 2,480 3,390 4,310 4,700
51,0 - 0,614 1,880 2,500 3,410 4,340 4,730
51,5 - 0,616 1,900 2,520 3,430 4,370 4,760
52,0 - 0,618 1,920 2,540 3,450 4,390 4,790
52,5 - 0,620 1,940 2,560 3,470 4,410 4,810
53,0 - 0,622 1,960 2,580 3,490 4,440 4,840
53,5 - 0,624 1,980 2,600 3,510 4,470 4,870
54,0 - 0,626 2,000 2,620 3,530 4,490 4,900
54,5 - 0,628 2,020 2,640 3,550 4,510 4,930
55,0 - 0,630 2,040 2,660 3,570 4,530 4,970
55,5 - - 2,060 2,680 3,590 4,550 5,000
56,0 - - 2,080 2,700 3,610 4,580 5,030
56,5 - - 2,100 2,720 3,630 4,610 5,060
57,0 - - 2,120 2,740 3,650 4,630 5,090
57,5 - - 2,140 2,760 3,670 4,650 5,110
58,0 - - 2,160 2,780 3,690 4,680 5,140
58,5 - - 2,180 2,800 3,710 4,710 5,170
59,0 - - 2,200 2,820 3,730 4,740 5,200
59,5 - - 2,220 2,840 3,750 4,770 5,230
60,0 - - 2,240 2,860 3,770 4,800 5,260
60,5 - - 2,260 2,880 3,790 4,830 5,290
61,0 - - 2,280 2,900 3,810 4,860 5,310
61,5 - - 2,300 2,920 3,830 4,890 5,340
62,0 - - 2,320 2,940 3,850 4,910 5,360
62,5 - - 2,340 2,960 3,870 4,940 5,390
63,0 - - 2,380 2,980 3,890 4,970 5,410
63,5 - - 2,400 3,000 3,910 5,000 5,440
64,0 - - 2,420 3,020 3,930 5,030 5,470
64,5 - - 2,440 3,040 3,950 5,060 5,500
65,0 - - 2,460 3,060 3,970 5,090 5,530
65,5 - - 2,480 3,080 3,990 5,120 5,560
66,0 - - 2,500 3,100 4,110 5,150 5,590
66,5 - - - 3,120 4,130 5,180 5,610
67,0 - - - 3,140 4,150 5,210 5,640
67,5 - - - 3,160 4,170 5,240 5,670
68,0 - - - 3,180 4,190 5,270 5,700
68,5 - - - 3,200 4,210 5,290 5,730
69,0 - - - 3,220 4,230 5,310 5,760
69,5 - - - 3,240 4,250 5,340 5,790
70,0 - - - 3,260 4,270 5,370 5,810
70,5 - - - - 4,290 5,400 5,840
71,0 - - - - 4,310 5,430 5,870
71,5 - - - - 4,330 5,460 5,900
72,0 - - - - 4,350 5,490 5,930
72,5 - - - - - 5,510 5,960
73,0 - - - - - 5,530 5,990
73,5 - - - - - 5,560 6,020
74,0 - - - - - 5,590 6,050
74,5 - - - - - - 6,070
75,0 - - - - - - 6,100
75,5 - - - - - - 6,130
76,0 - - - - - - 6,160
76,5 - - - - - - -
77,0 - - - - - - -
77,5 - - - - - - -
78,0 - - - - - - -
78,5 - - - - - - -
79,0 - - - - - - -
79,5 - - - - - - -
80,0 - - - - - - -
80,5 - - - - - - -
81,0 - - - - - - -
81,5 - - - - - - -
82,0 - - - - - - -
82,5 - - - - - - -
83,0 - - - - - - -
83,5 - - - - - - -
84,0 - - - - - - -
84,5 - - - - - - -
85,0 - - - - - - -
85,5 - - - - - - -
86,0 - - - - - - -
86,5 - - - - - - -
87,0 - - - - - - -
87,5 - - - - - - -
88,0 - - - - - - -



Продолжение таблицы 2

А
Пред.
откл.
±0,2		 d
14,5 16,5 18,5 20,5 22,5 24,5
Применяе-
мость		 Масса
1000 шт., кг		 Применяе-
мость		 Масса
1000 шт., кг		 Применяе-
мость		 Масса
1000 шт., кг		 Применяе-
мость		 Масса
1000 шт., кг		 Применяе-
мость		 Масса
1000 шт., кг		 Применяе-
мость		 Масса
1000 шт., кг
10,0   -   -   -   -   -   -
10,5 - - - - - -
11,0 - - - - - -
11,5 - - - - - -
12,0 - - - - - -
12,5 - - - - - -
13,0 - - - - - -
13,5 - - - - - -
14,0 - - - - - -
14,5 - - - - - -
15,0 - - - - - -
15,5 - - - - - -
16,0 - - - - - -
16,5 - - - - - -
17,0 - - - - - -
17,5 - - - - - -
18,0 - - - - - -
18,5 - - - - - -
19,0 - - - - - -
19,5 - - - - - -
20,0 - - - - - -
20,5 - - - - - -
21,0 - - - - - -
21,5 - - - - - -
22,0 - - - - - -
22,5 - - - - - -
23,0 - - - - - -
23,5 - - - - - -
24,0 - - - - - -
24,5 - - - - - -
25,0 - - - - - -
25,5 - - - - - -
26,0 - - - - - -
26,5 - - - - - -
27,0 - - - - - -
27,5 - - - - - -
28,0 - - - - - -
28,5 - - - - - -
29,0 - - - - - -
29,5 - - - - - -
30,0 - - - - - -
30,5 - - - - - -
31,0 - - - - - -
31,5 - - - - - -
32,0 - - - - - -
32,5 - - - - - -
33,0 - - - - - -
33,5 - - - - - -
34,0 - - - - - -
34,5 - - - - - -
35,0 - - - - - -
35,5 - - - - - -
36,0 - - - - - -
36,5 - - - - - -
37,0 - - - - - -
37,5 - - - - - -
38,0 - - - - - -
38,5 - - - - - -
39,0 - - - - - -
39,5 - - - - - -
40,0 5,410 6,310 - - - -
40,5 5,440 6,340 - - - -
41,0 5,470 6,370 - - - -
41,5 5,500 6,400 - - - -
42,0 5,530 6,430 - - - -
42,5 5,560 6,460 - - - -
43,0 5,590 6,490 - - - -
43,5 5,620 6,520 - - - -
44,0 5,650 6,550 - - - -
44,5 5,680 6,580 - - - -
45,0 5,710 6,610 7,800 8,890 - -
45,5 5,740 6,640 7,830 8,920 - -
46,0 5,770 6,670 7,860 8,950 - -
46,5 5,800 6,700 7,890 8,980 - -
47,0 5,830 6,730 7,920 9,010 - -
47,5 5,860 6,760 7,950 9,040 - -
48,0 5,890 6,790 7,980 9,070 - -
48,5 5,910 6,820 8,010 9,100 - -
49,0 5,940 6,850 8,040 9,130 - -
49,5 5,970 6,880 8,070 9,160 - -
50,0 6,000 6,910 8,100 9,190 11,260 12,560
50,5 6,030 6,940 8,130 9,220 11,290 12,590
51,0 6,060 6,970 8,160 9,250 11,320 12,620
51,5 6,090 7,000 8,190 9,280 11,350 12,650
52,0 6,120 7,030 8,220 9,310 11,380 12,680
52,5 6,150 7,060 8,250 9,340 11,410 12,710
53,0 6,180 7,090 8,280 9,370 11,440 12,740
53,5 6,210 7,120 8,310 9,400 11,470 12,770
54,0 6,240 7,150 8,340 9,430 11,500 12,800
54,5 6,270 7,180 8,370 9,460 11,530 12,830
55,0 6,300 7,210 8,400 9,490 11,560 12,860
55,5 6,330 7,240 8,430 9,520 11,590 12,890
56,0 6,360 7,270 8,460 9,550 11,620 12,920
56,5 6,390 7,300 8,490 9,580 11,650 12,950
57,0 6,420 7,330 8,520 9,610 11,680 12,980
57,5 6,450 7,360 8,550 9,640 11,710 13,010
58,0 6,480 7,390 8,580 9,670 11,740 13,040
58,5 6,510 7,420 8,610 9,700 11,770 13,070
59,0 6,540 7,450 8,640 9,730 11,800 13,100
59,5 6,570 7,480 8,670 9,760 11,830 13,130
60,0 6,600 7,510 8,700 9,790 11,860 13,160
60,5 6,630 7,540 8,730 9,820 11,890 13,190
61,0 6,660 7,570 8,760 9,850 11,920 13,220
61,5 6,690 7,600 8,790 9,880 11,950 13,250
62,0 6,720 7,630 8,820 9,910 11,960 13,280
62,5 6,750 7,660 8,850 9,940 12,010 13,310
63,0 6,780 7,690 8,880 9,970 12,040 13,340
63,5 6,810 7,720 8,910 10,000 12,070 13,370
64,0 6,840 7,750 8,940 10,030 12,100 13,400
64,5 6,870 7,780 8,970 10,060 12,130 13,430
65,0 6,900 7,810 9,000 10,090 12,160 13,460
65,5 6,930 7,840 9,030 10,120 12,190 13,490
66,0 6,960 7,870 9,060 10,150 12,220 13,520
66,5 6,990 7,900 9,090 10,180 12,250 13,550
67,0 7,020 7,930 9,120 10,210 12,280 13,580
67,5 7,050 7,960 9,150 10,240 12,310 13,610
68,0 7,080 7,990 9,180 10,270 12,340 13,640
68,5 7,110 8,020 9,210 10,300 12,370 13,670
69,0 7,140 8,050 9,240 10,330 12,400 13,700
69,5 7,170 8,080 9,270 10,360 12,430 13,730
70,0 7,200 8,110 9,300 10,390 12,460 13,760
70,5 7,230 8,140 9,330 10,420 12,490 13,790
71,0 7,260 8,170 9,360 10,450 12,520 13,820
71,5 7,290 8,200 9,390 10,480 12,550 13,850
72,0 7,320 8,230 9,420 10,510 12,580 13,880
72,5 7,350 8,260 9,450 10,540 12,610 13,910
73,0 7,380 8,290 9,480 10,570 12,640 13,940
73,5 7,410 8,320 9,510 10,600 12,670 13,970
74,0 7,440 8,350 9,540 10,630 12,700 14,000
74,5 7,470 8,380 9,570 10,660 12,730 14,030
75,0 7,500 8,410 9,600 10,690 12,760 14,060
75,5 7,530 8,440 9,630 10,720 12,790 14,090
76,0 7,560 8,470 9,660 10,750 12,820 14,120
76,5 7,590 8,500 9,690 10,780 12,850 14,150
77,0 7,620 8,530 9,720 10,810 12,880 14,170
77,5 7,650 8,560 9,750 10,840 12,910 14,200
78,0 7,680 8,590 9,780 10,870 12,940 14,230
78,5 - 8,620 9,810 10,900 12,970 14,260
79,0 - 8,650 9,840 10,930 13,000 14,290
79,5 - 8,680 9,870 10,960 13,030 14,320
80,0 - 8,710 9,900 10,990 13,060 14,350
80,5 - - 9,930 11,020 13,090 14,380
81,0 - - 9,960 11,050 13,120 14,410
81,5 - - 9,990 11,080 13,150 14,440
82,0 - - 10,020 11,110 13,180 14,470
82,5 - - - 11,140 13,210 14,500
83,0 - - - 11,170 13,240 14,530
83,5 - - - 11,200 13,270 14,560
84,0 - - - 11,230 13,300 14,590
84,5 - - - - 13,330 14,620
85,0 - - - - 13,360 14,650
85,5 - - - - 13,390 14,680
86,0 - - - - 14,020 14,710
86,5 - - - - - 14,740
87,0 - - - - - 14,770
87,5 - - - - - 14,800
88,0 - - - - - 14,830



Пример наименования и обозначения двойной стопорной шайбы исполнения 1 для крепежной детали с номинальным диаметром резьбы 6 мм, с размером А = 25 м, из стали 20, цинкованной:

Шайба 2-6-25-Ц-ОСТ 1 34528-80

То же исполнения 1, из стали 12Х18Н10Т-М, пассивированной:

Шайба 2-6-25-Хим.Пас-ОСТ 1 34529-80

ost-1.ru © 2024.
